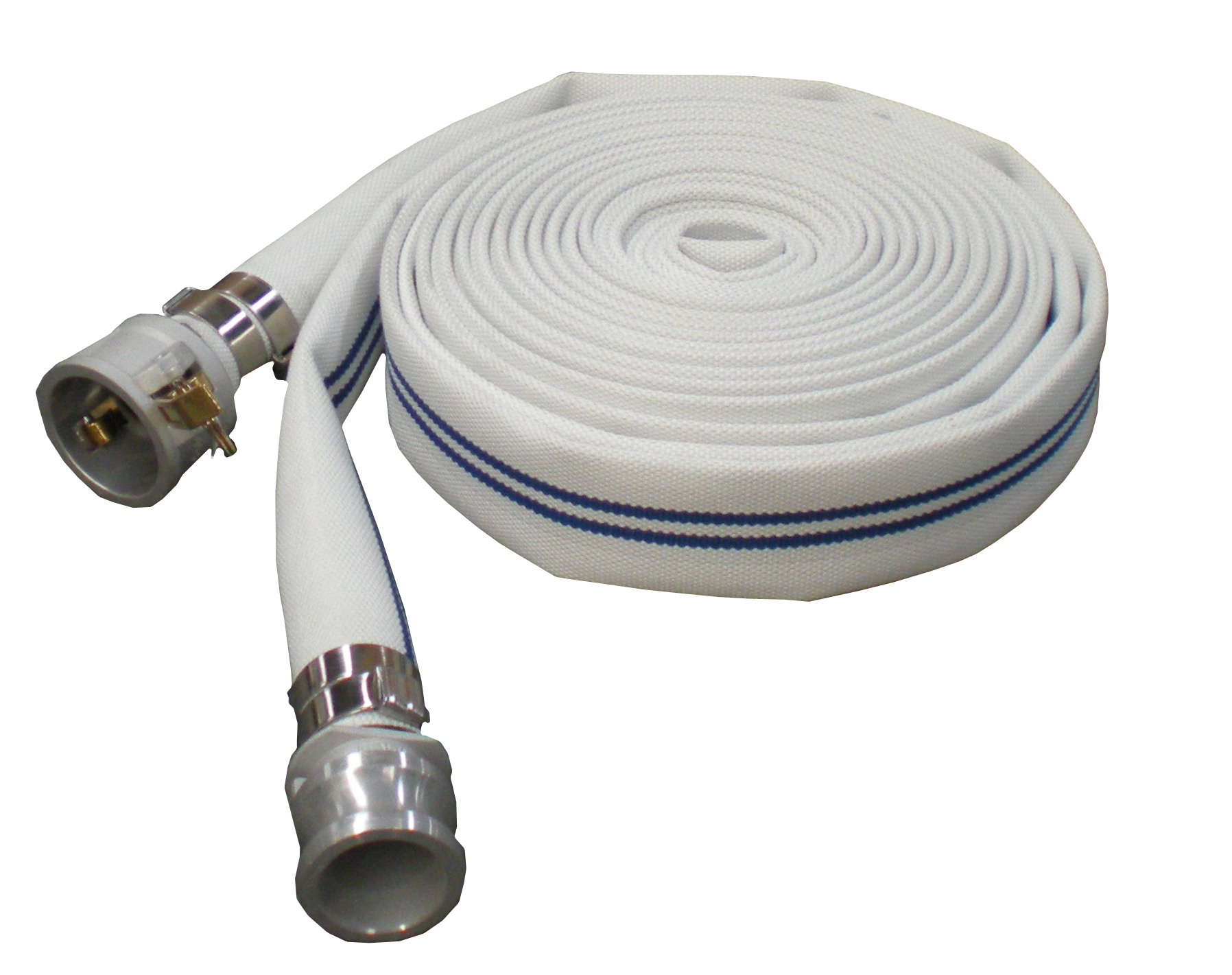

Product Description：
NR Lining Double Jacket hose is for multipurpose water delivery operations and general delivery applications in industry. The hose weave jacket is a double jackets construction and made of high tenacity polyester yarn. Inside is made by NR.PU-coating in different colours available for a better resistance to oil chemicals and dirt.
Applications:
l Water deliver
l Construction site
l Industrial and municipal fire brigades
l Military
|
Bore size |
Weight |
Working Pressure |
Burst Pressure |
Test Pressure |
Length |
|
mm |
Inch |
g/m |
bar |
psi |
bar |
psi |
bar |
psi |
m |
|
25 |
1 |
|
16/20 |
232/290 |
48/60 |
696/870 |
24/30 |
348/435 |
|
|
38 |
1 1/2 |
|
16/20 |
232/290 |
48/60 |
696/870 |
24/30 |
348/435 |
|
|
45 |
1 3/4 |
|
16/20 |
232/290 |
48/60 |
696/870 |
24/30 |
348/435 |
|
|
52 |
2 |
|
16/20 |
232/290 |
48/60 |
696/870 |
24/30 |
348/435 |
|
|
65 |
2 1/2 |
|
16/20 |
232/290 |
48/60 |
696/870 |
24/30 |
348/435 |
|
|
70 |
2 3/4 |
|
16/20 |
232/290 |
48/60 |
696/870 |
24/30 |
348/435 |
|
|
75 |
3 |
|
16/20 |
232/290 |
48/60 |
696/870 |
24/30 |
348/435 |
|
|
102 |
4 |
|
16/20 |
232/290 |
48/60 |
696/870 |
24/30 |
348/435 |
|
Construction:
l Inside and outside 100% high tenacity polyester yarn
l Circular woven plain or twill-weave
l NR liner
Color: Standard colors is white and red. other colours on request
Length: 15m,20m,25m,30m. Other diameters on request
Standard ref: UL,FM
Couplings: Binding with international couplings available on request
Temperature Range: -20°C up to +80°C
|
