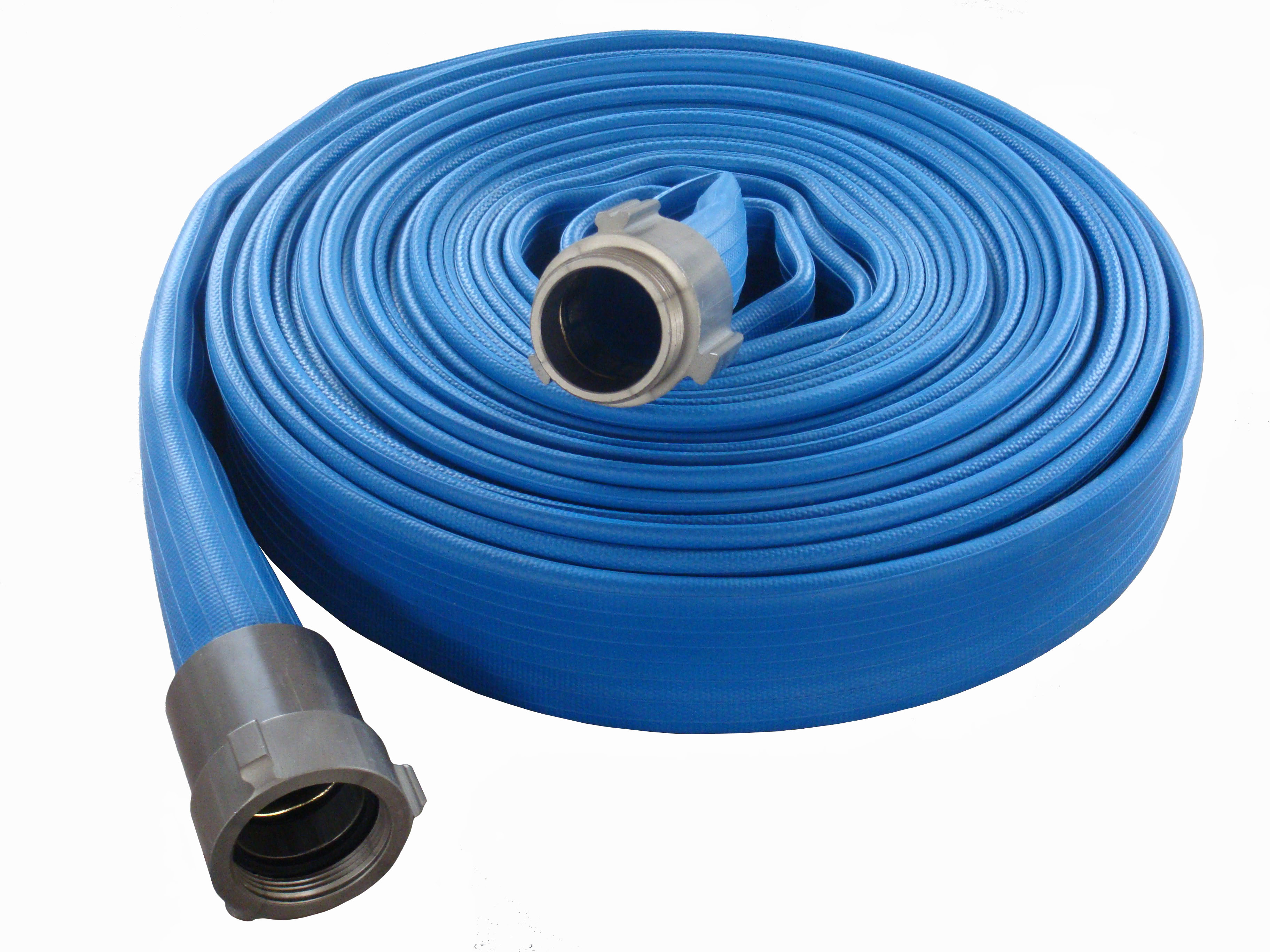

Nitrile-PVC multipurpose durable hose for fire-fighting operations.the hose weave jacket is made of high tenacity polyester staple and polyester filaments. Inside and outside is made by Nitrile PVC. superior abrasion resistance, toughness and durability.

• resistance to oil, fuel and a wide range of chemicals
• very good resistance to heat and flame
• very low friction loss and low elongation
• excellent properties against UV and ozone impact
• superior adhesion between rubber and textile
• no cleaning and drying required
• easy to repair

 Applications:

l   Marine fire fighting and offshore installations

l   Refineries

l   Industrial and municipal fire brigades

l   Military

l   Chemical industry

Bore  size		Weight	Working Pressure		Burst Pressure		Test Pressure		Length
mm	Inch	g/m	bar	psi	bar	psi	bar	psi	m
38	1 1/2		15/20	220/290	45/60	660/870	22.5/30	330/435
45	1 3/4		15/20	220/290	45/60	660/870	22.5/30	330/435
52	2		15/20	220/290	45/60	660/870	22.5/30	330/435
65	2 1/2		15/20	220/290	45/60	660/870	22.5/30	330/435
70	2 3/4		15/20	220/290	45/60	660/870	22.5/30	330/435
75	3		15/20	220/290	45/60	660/870	22.5/30	330/435

Construction:

l   Outside 100% high tenacity polyester yarn

l   Circular woven twill-weave

l   Inside: high grade formulated Nitrile / PVC compound,very smooth for minimum friction loss

l   Outside: high grade formulated Nitrile / PVC compound,heavy ribbing for superior abrasion resistance and protection against contact heat

Color: Standard colors red and black, other colours on request

Length: 15m,20m,30m. Other diameters on request

Standard ref: MED 96/98/EC, NFPA 1961, BS 6391 / Type 3, DIN 14811 and other national standards

Couplings: Binding with international couplings available on request

Temperature Range: -20°C up to +100°C
